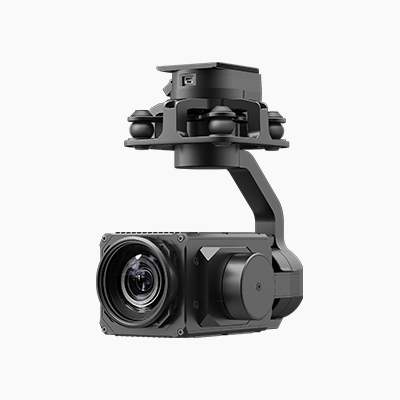

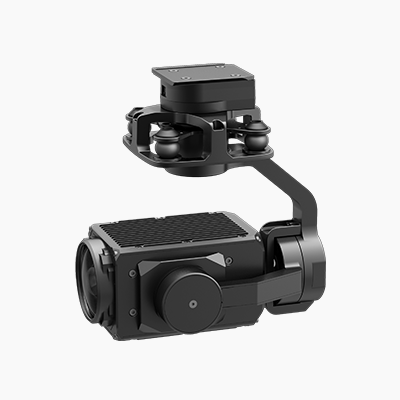

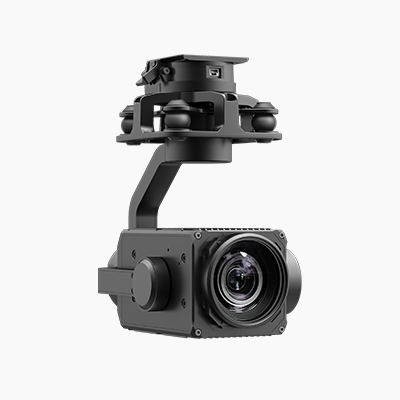

Z-6A High Zoom Rate Visible Light Gimbal
Characteristics
· Carries a 2.07M pixels 120x hybrid zoom (30x optical zoom) camera, which provides a video resolution of 1080P@30fps and an image resolution of 1920 x 1080.
· 3-axis mechanical stabilized structure which is able to spin continually around its yaw axis.
· With the Dual-IMU complementary algorithms with IMU temperature control and carrier AHRS fusion, the Z-6A provides a stabilization accuracy at ±0.01°.
· Image supports shooting point coordinate EXIF save.
· Support remote screen projection and docking command platform.
· Can be mounted tool-lessly onto unmanned aerial vehicles with its quick-release port.
Item | Parameters | ||
General | Dimensions | 154 x 95 x 161mm | |
Weight | 680g | ||
Operating Voltage | 20~53V | ||
Power | 7.6W (AVG) / 36W (Stall) | ||
Protection Rating | IP43 | ||
Gimbal | Angular Vibration Range | ±0.01° | |
Maximum Controllable Speed | Pitch: ±200° /s, Yaw: ±200° /s | ||
Controllable Range | Pitch: -120°～+30°, Yaw: ±360° constantly | ||
Zoom Camera | Image Sensor | 1/2.8〞CMOS; Effective Pixels: 2.07M | |
Lens | Focal Length: 4.7~141mm HFOV: 60°～ 2.3° VFOV: 36.9°～ 1.3° DFOV: 68.4°～ 2.6° | ||
Optical Zoom Rate | 30x | ||
Equivalent Digital Zoom Rate | 4x | ||
Min Illumination | Night Vision off: 0.05Lux / F1.6 Night Vision on: 0.005Lux / F1.6 | ||
S/N | ≥55dB（AGC off，Weight on） | ||
Object Detective Distance | EN62676-4:2015 | Person[1]: 2128.2m Vehicle[2]: 2797.1m | |
Johnson Criteria | Person: 24310.3m Vehicle: 74551.7m | ||
Object Identification Distance | EN62676-4:2015 | Person: 425.6m Vehicle: 559.4m | |
Johnson Criteria | Person: 6077.6m Vehicle: 18637.9m | ||
Object Verified Distance | EN62676-4:2015 | Person: 212.8m Vehicle: 279.7m | |
Johnson Criteria | Person: 3038.8m Vehicle: 9319.0m | ||
Image & Video | Output Video Resolution | 1080P@30fps | |
Store Video Resolution | 1080P@30fps | ||
Image Resolution | 1920 x 1080 | ||
Stream Encode Format | H.264, H.264H, H.265 | ||
Stream Network Protocol | ONVIF, GB/T28181, HTTP, RTSP, TCP, UDP, RTP | ||
Supported SD Card | Supports a TF card with a capacity of up to 256GB | ||
Environment | Operating Temperature | -20℃～60℃ | |
Storage Temperature | -20℃～70℃ | ||
Operating Humidity | ≤85%RH (Non-condensing) | ||
[1] Person: 1.8 x 0.5m
[2] Vehicle: 4.2 x 1.8m

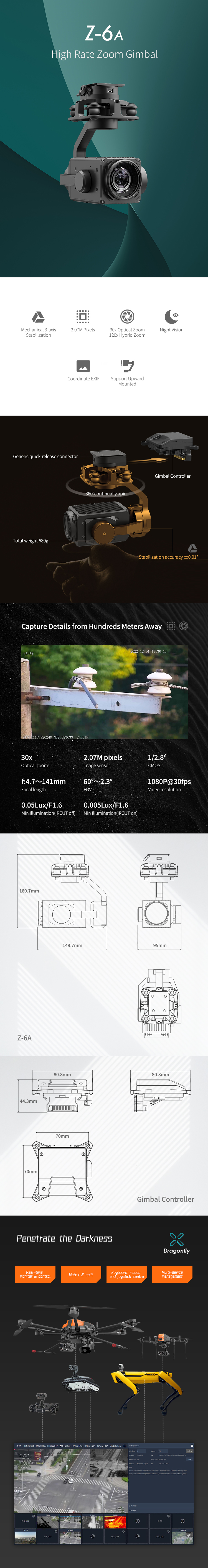

Release and Update | ||
Z-6A Release and Update Records | 2024-3-6 | pdf |
Software | ||
Dragonfly_V3.0.0306 | 2024-3-6 | rar |
| GCU_Config_V2.0 | 2023-6-9 | |
QGC_XF_Andriod_230928 | 2023-9-28 | rar |
| QGC_XF_Windows_230828 | 2023-8-29 | |
Firmware | ||
Gimbal_Upgrade_package_V2.6 | 2023-8-1 | |
GCU_Upgrade_package_V2.9 | 2024-2-21 | |
Document | ||
Z-6A_Ver3.0.0 Specifications | 2024-3-15 | pdf |
Z-6A User Manual-XF (A5)V3.0 | 2024-3-15 | pdf |
GCU Private Protocol-XF(A5)V2.0.4 | 2024-3-15 | pdf |
| GCU User Manual-XF(A5)V1.1 | 2023-10-31 | pdf |
Blueprint | ||
Z-6A_3D | 2023-6-9 | |
GCU_3D | 2023-6-9 | |
| MD-TUB_Ver2.0_3D | 2023-6-9 | |
| Photo show |
 |  |  |  | |

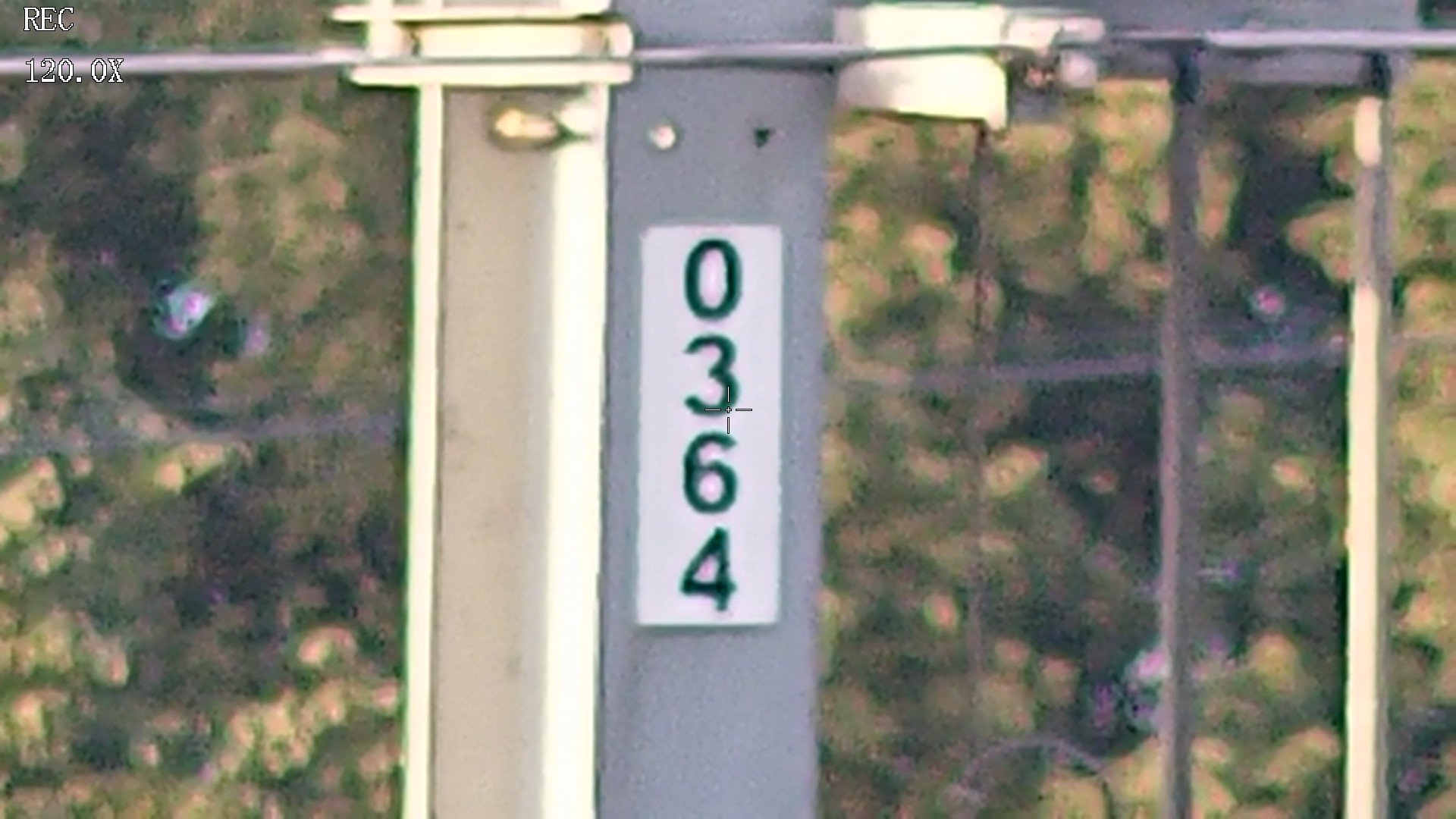

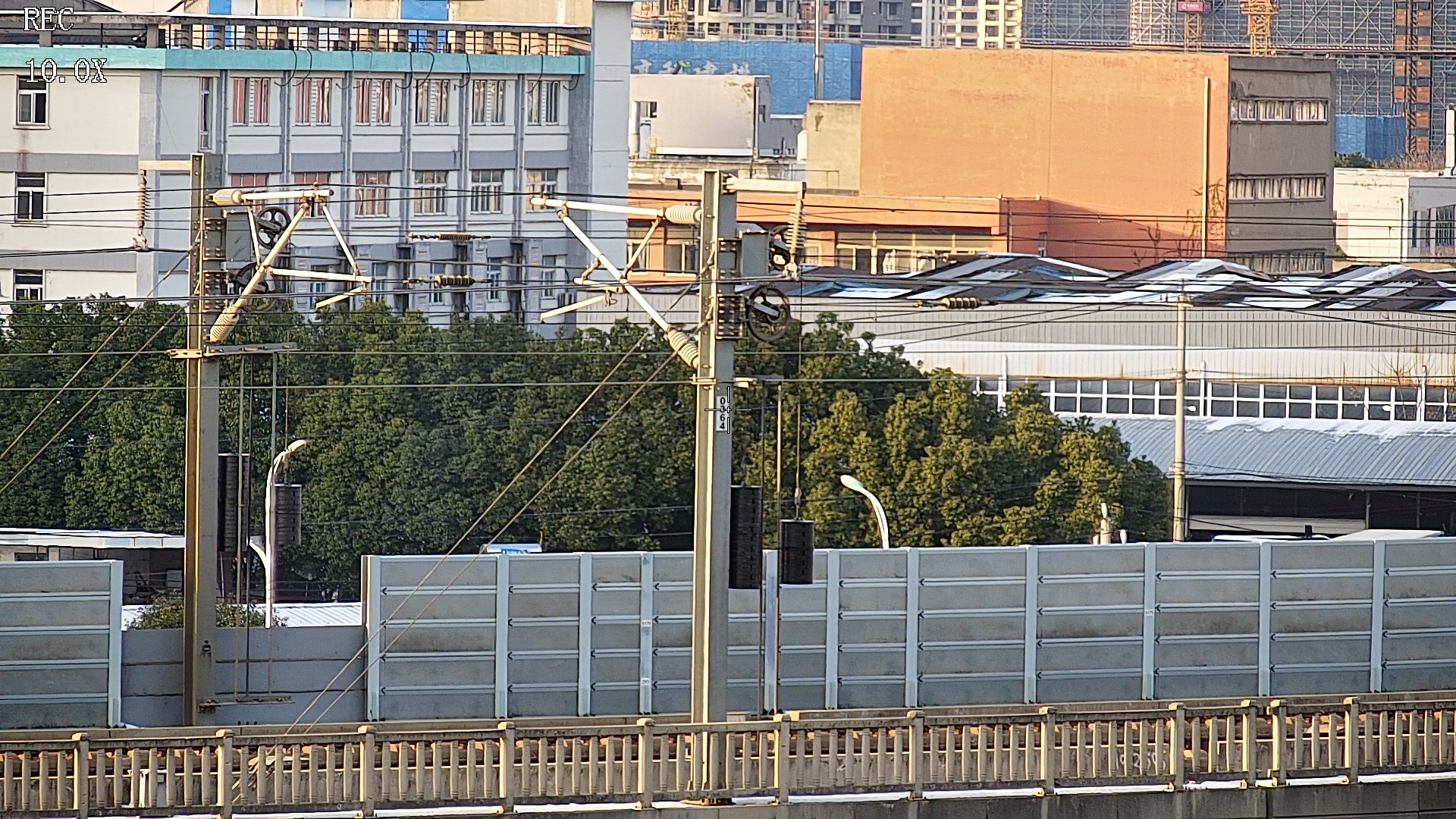

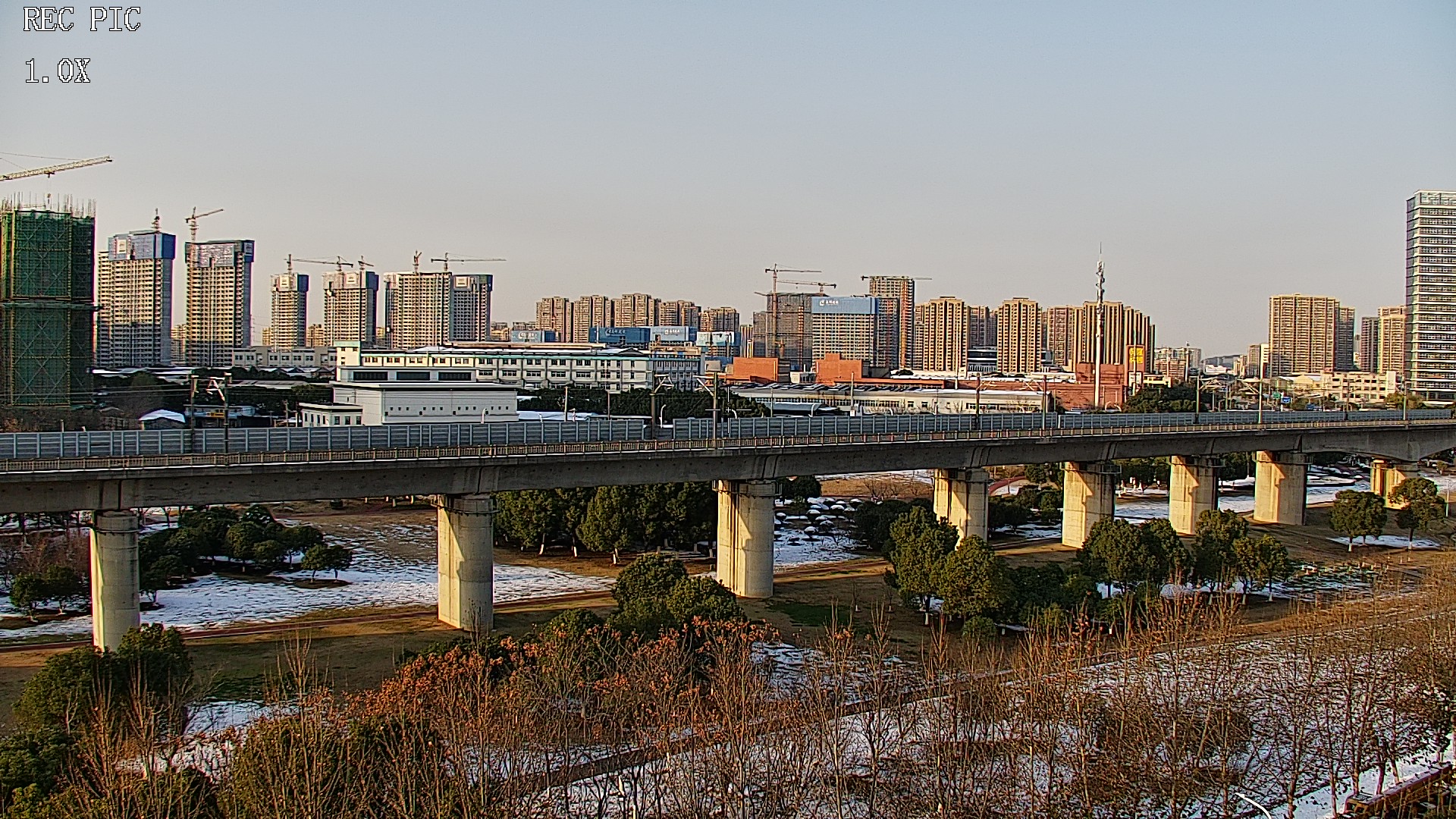

| Number-1-1x-Optical Zoom Rate | Number-1-250m-10x-Optical Zoom Rate | Number-1-250m-30x-Digital Zoom Rate | Number-1-250m-120x-Digital Zoom Rate | |
